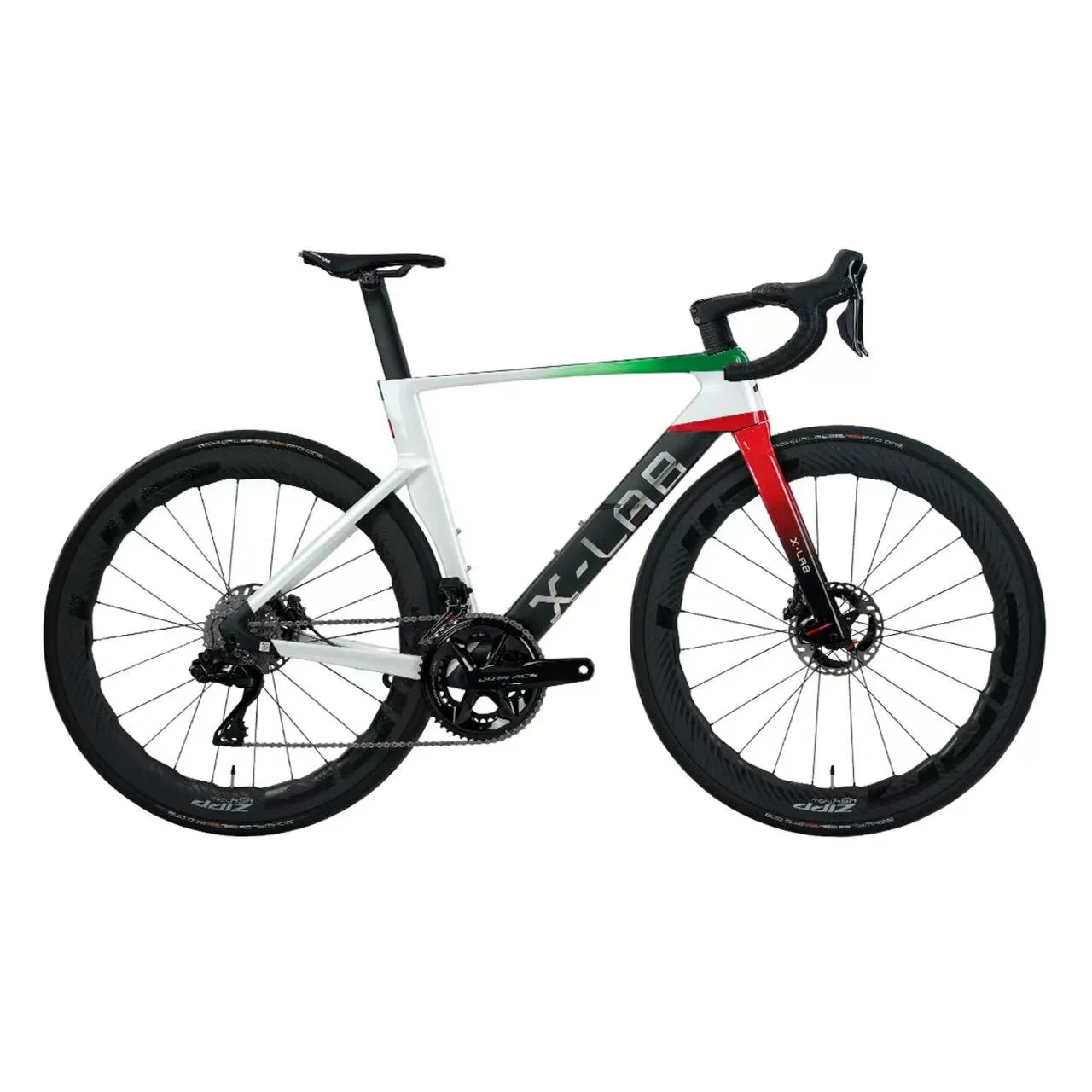

X-Lab AD9 Carbon Road Bike – Shimano 105 Di2 & 50mm Carbon Wheels

Weight & Dimensions

• Complete Bike Weight: 7.6kg (Size M, excluding pedals)

• Maximum Load Capacity: 100kg

Controls & Cockpit

• Handlebar: X-Lab Carbon Integrated Bar

  • XS/360×90mm, S/360×100mm, M/380×110mm, L/400×120mm, XL/400×130mm

• Bar Tape: Mummy Silicone EVA 2400×30mm

• Saddle: Selle Italia SLR BOOST Carbon Rail 145×248mm

• Seatpost: Carbon Fiber Straight 300mm

Frame & Fork

• Frame: X-Lab AD9 Carbon Frame (Toray T800×M40X)

• Fork: Carbon Fiber Fork (12×100mm Thru-axle, Flat-mount Disc)

Wheels & Tires

• Front Wheel: Branta C50 UL Hub, 21mm Internal/29mm External Width, Center Lock

• Rear Wheel: Branta C50 UL Hub, 21mm Internal/29mm External Width, Center Lock

• Inner Tubes: 700C×25/32C Ultra Lightweight 0.6T

• Tires: Maxxis Clincher Hypr ZK Folding Tire 700×28c

Drivetrain

• Shifters: SHIMANO 105 Di2 ST-R7170

• Front Derailleur: SHIMANO 105 Di2 FD-R7150

• Rear Derailleur: SHIMANO 105 Di2 RD-R7150

• Chain: SHIMANO M7100 12-speed

• Crankset: SHIMANO 105 FC-R7100 34/50T 12-speed

• Cassette: SHIMANO 105 CS-R7101 11-34T 12-speed

• Bottom Bracket: BBT47 86-24

Braking System

• Front Brake: SHIMANO 105 ST-R7170(R), BR-R7170(F)

• Rear Brake: SHIMANO 105 ST-R7170(L), BR-R7170(R)

• Disc Rotors: SHIMANO SM-RT70 (Front 160mm, Rear 140mm)
