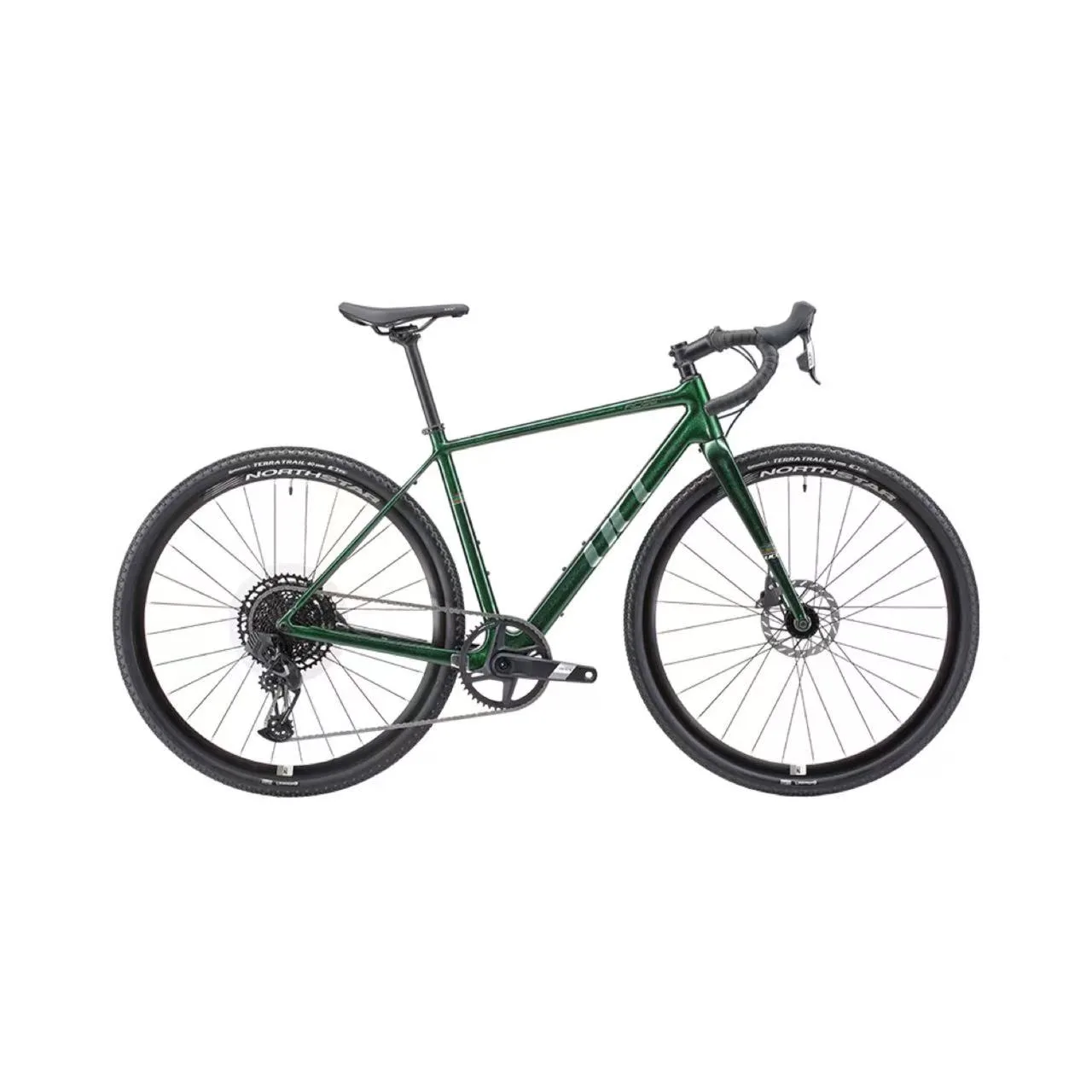

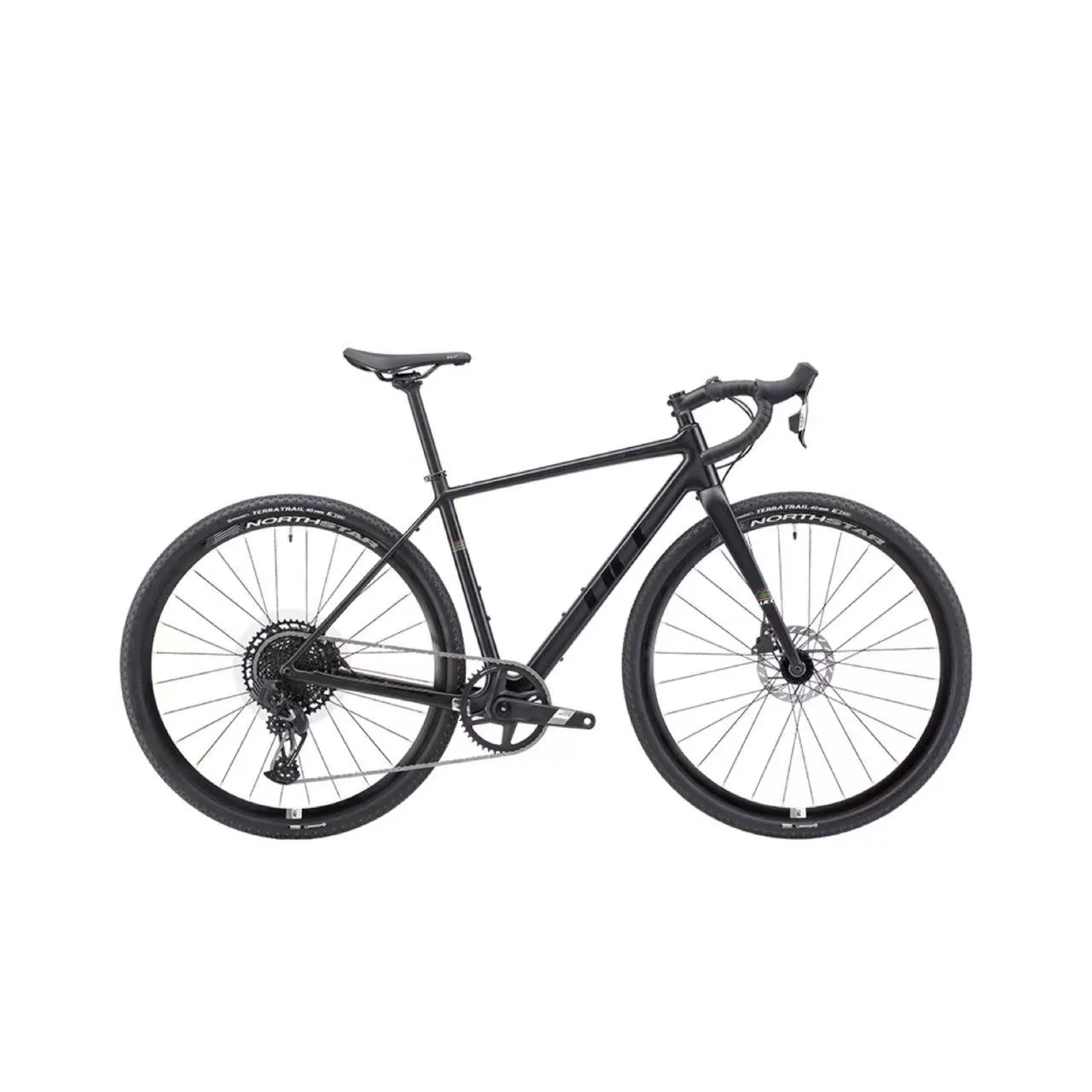

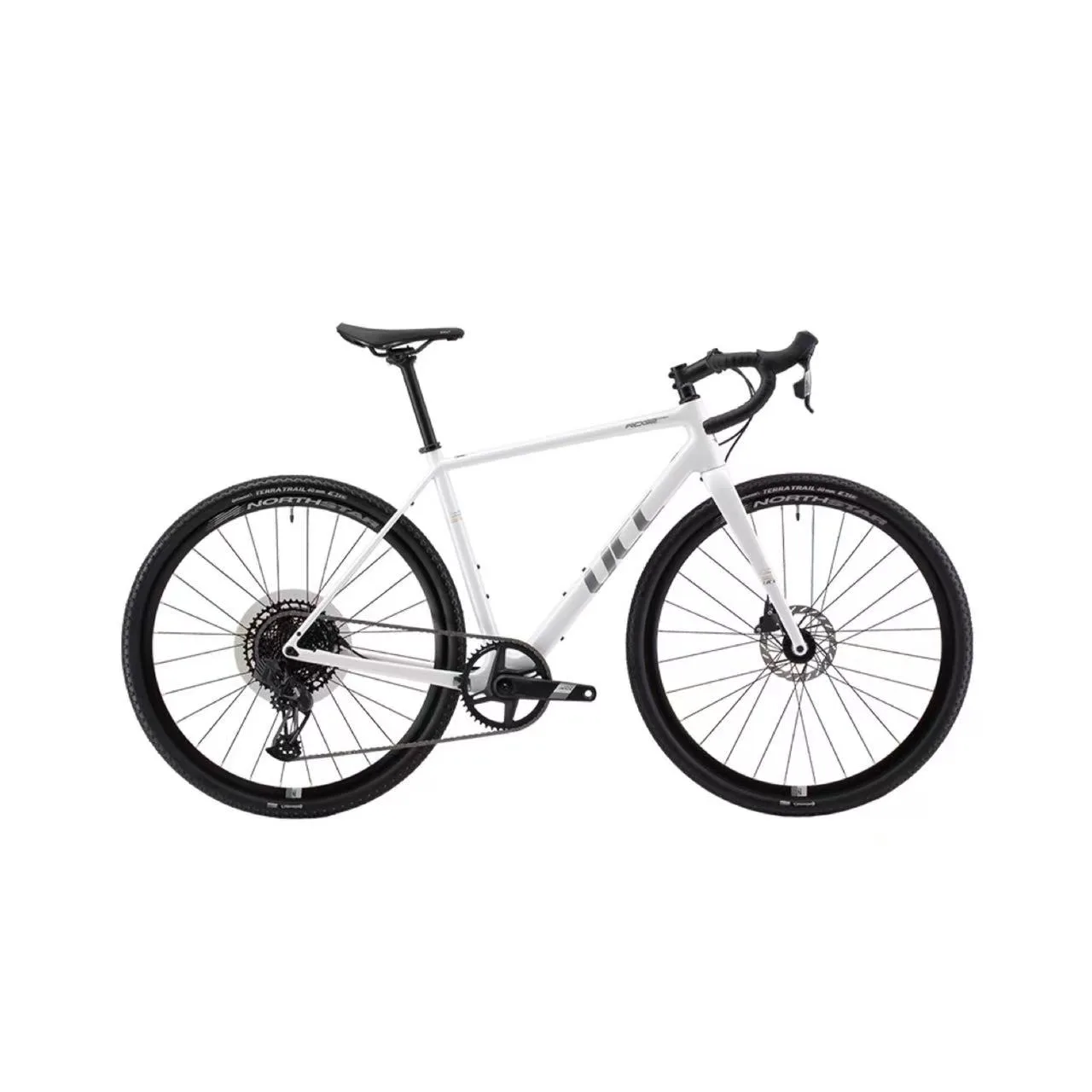

UCC CARBAON APEX AXS 12S Gravel Bike – SRAM Wireless & Carbon Frame

Frameset

• Sizes: XS 450mm / S 470mm / M 490mm / L 510mm

• Frame: UCC 700C SLC Carbon Gravel Frame

• Features: BB86 bottom bracket, 160mm flat-mount brake, 142mm thru-axle

• Fork: UCC 700C SLC Carbon Fork

• Features: 140/160mm flat-mount brake, 100mm thru-axle

Drivetrain (Full SRAM APEX + X1 Eagle 12-speed)

• Speeds: 1×12

• Shifters: SRAM APEX AXS 12S Wireless

• Front Derailleur: None (1x system)

• Rear Derailleur: SRAM X1 EAGLE AXS (with battery protection case)

• Crankset: SRAM APEX 1 46T

• Bottom Bracket: SRAM DUB PressFit BB

• Cassette: SRAM EAGLE 11–50T (wide-range off-road gear ratio)

• Chain: SRAM CN-APEX-D1 12S

Braking System

• Brakes: SRAM APEX Hydraulic Disc

• Discs: SRAM 160mm 6-bolt

Cockpit

• Handlebar: UCC AL6061 Double-butted, φ31.8mm, 16° flare, ISO-R standard

• Stem: UCC AL6061 3D forged, +7° angle, 31.8mm clamp

• Seatpost: UCC AL6061 27.2mm, ISO-R standard

• Saddle: SELLE ROYAL Gravel-specific textured sport saddle

Wheelset

• Rims: UCC AL6061 disc-specific, tubeless-ready

• Front Hub: NOVATEC 28H 2-bearing, 6-bolt TA

• Rear Hub: NOVATEC 28H 4-bearing, 6-bolt TA

• Tires: CONTINENTAL TERRA TRAIL puncture-resistant 700×40C

• Inner Tubes: 700×35/43C Presta valve
