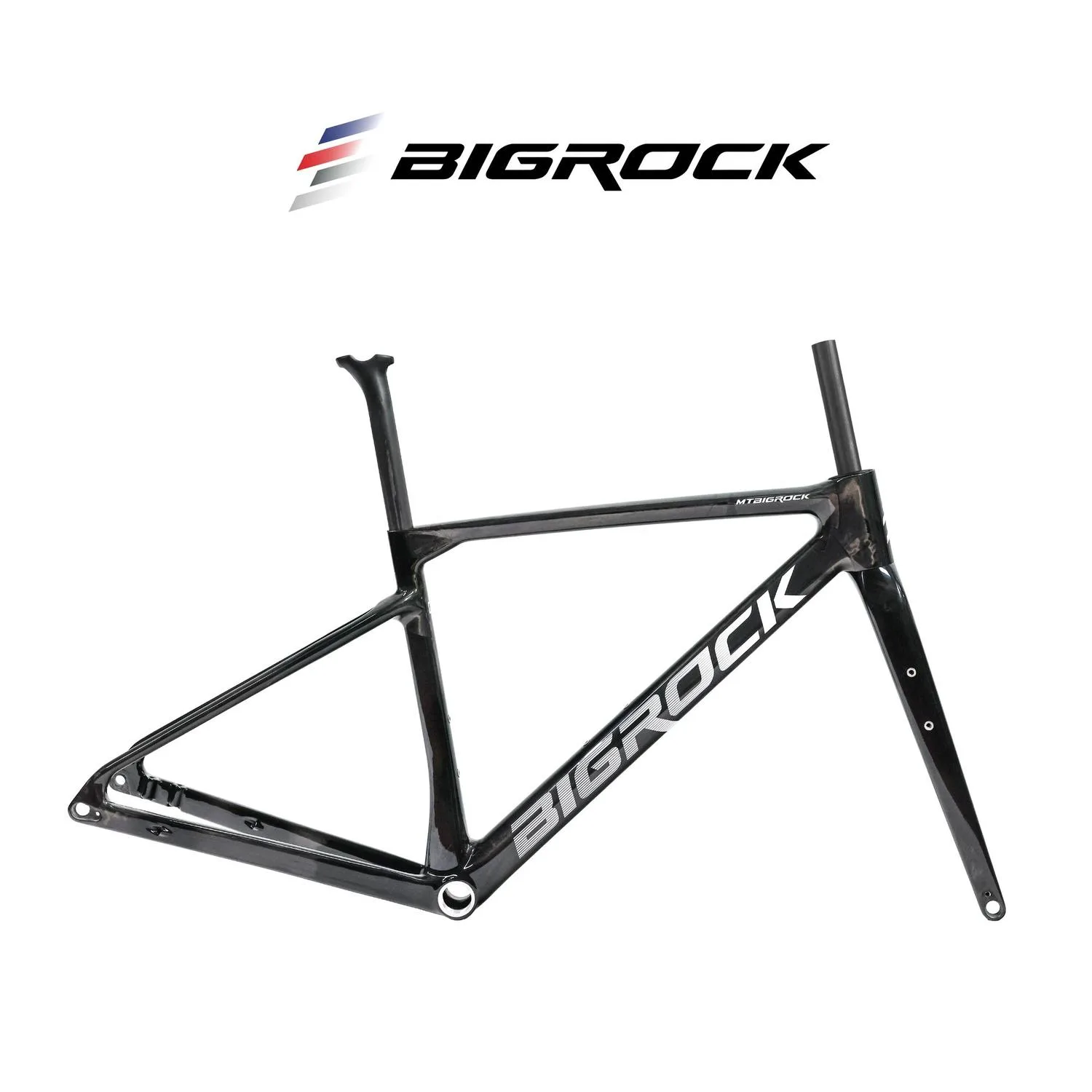

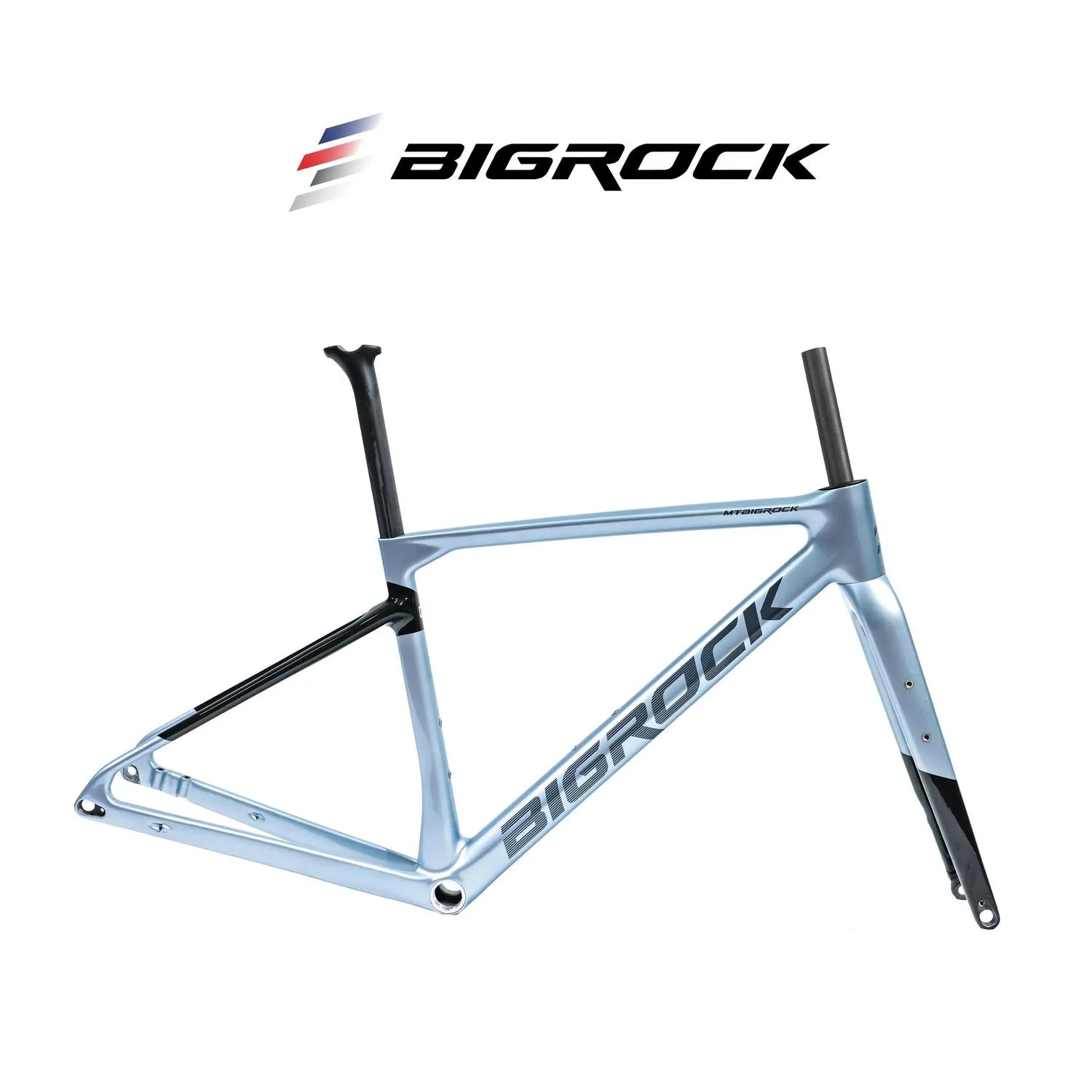

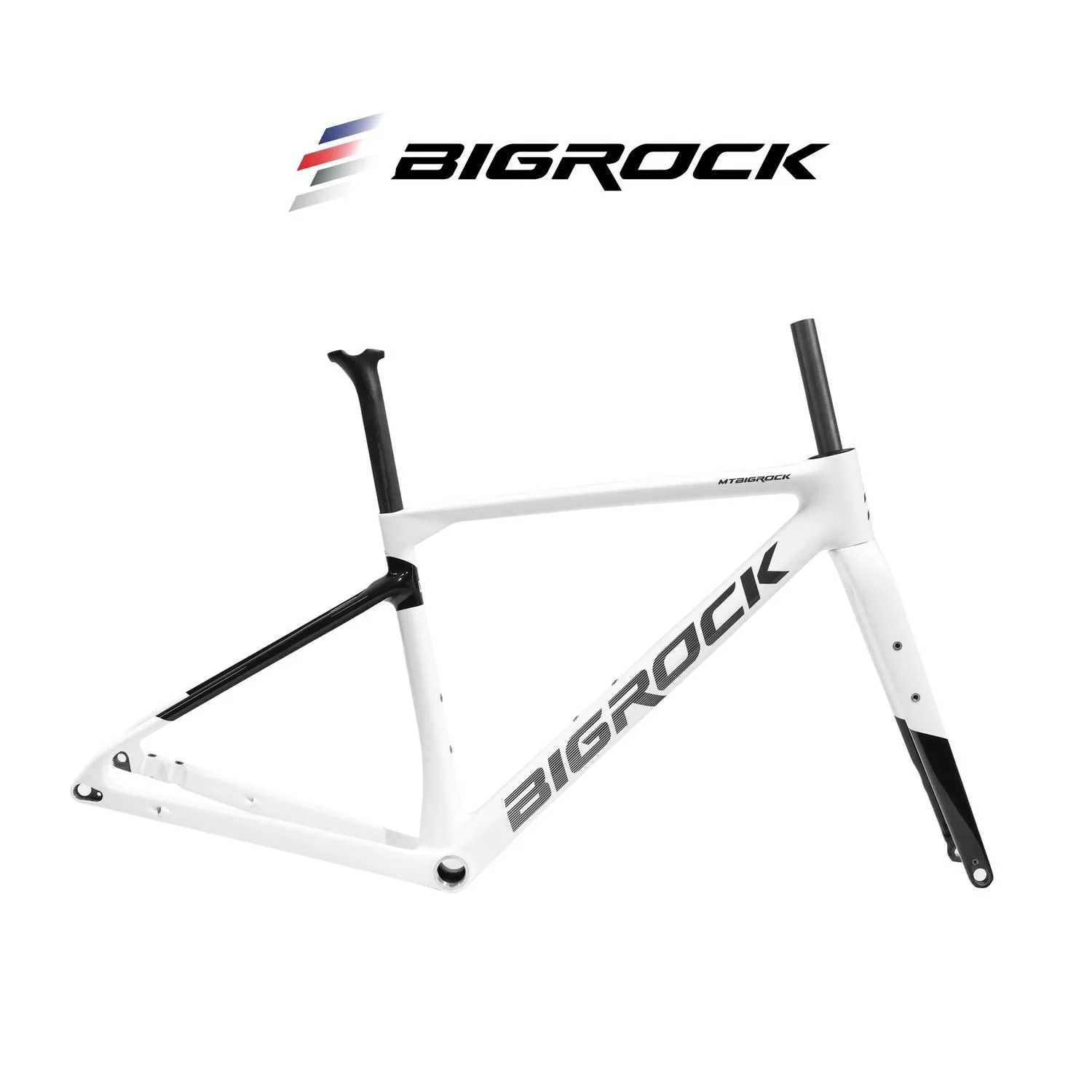

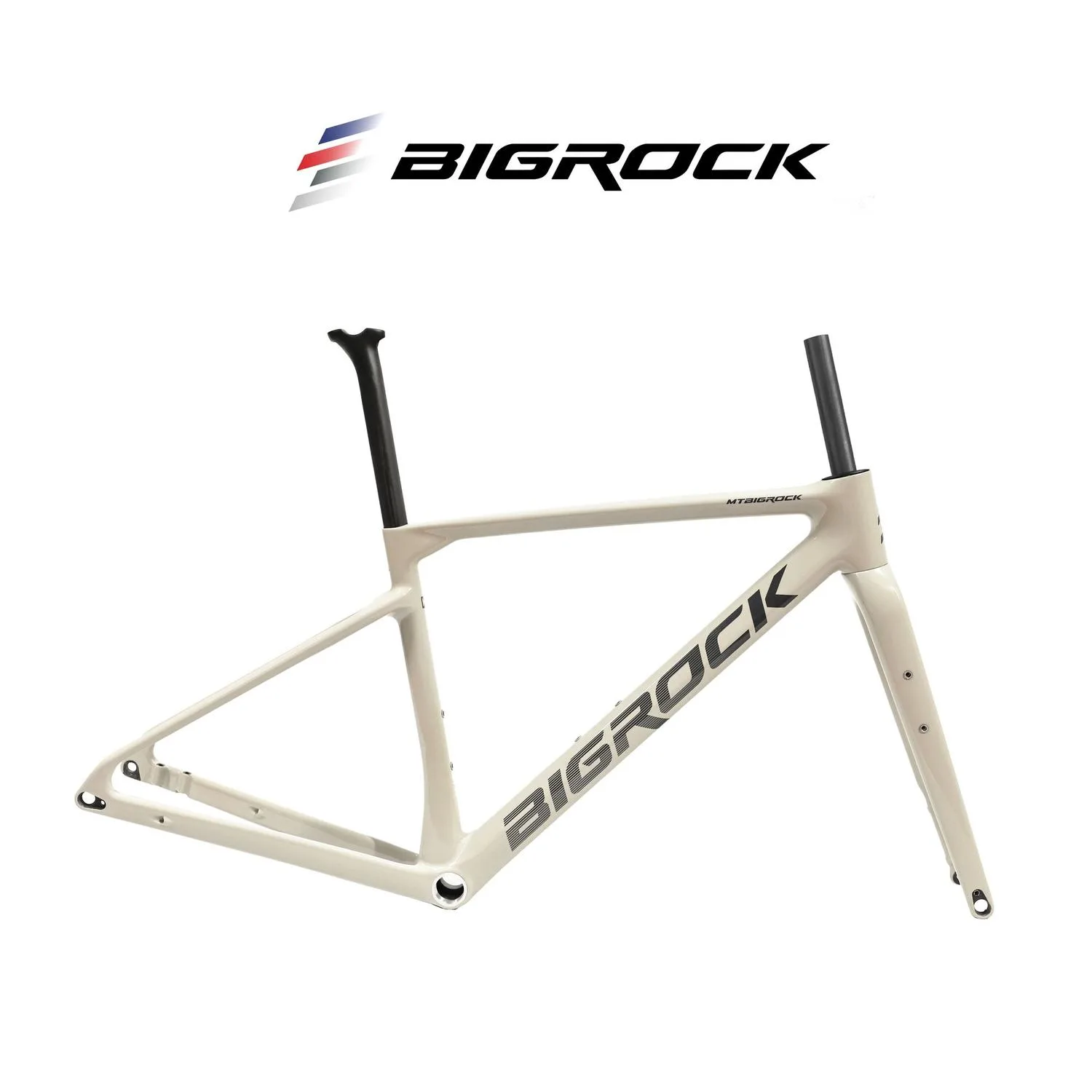

BigRock Gravel Bike Frame – Lightweight & 47mm Tire Clearance
$1,661.00
The BigRock gravel frame offers exceptional versatility with its generous 47mm tire clearance for 700c wheels and lightweight carbon construction. Weighing just 960-980g across sizes with a 400g fork, this frame features a reliable BSA threaded bottom bracket, 12x142mm thru-axle spacing, and integrated seatpost clamp. Available in five colors and three sizes, it’s the ideal foundation for building your dream gravel bike.
Due to batch variations, the manufacturer of individual parts may change. Please refer to the actual product.
Actual weight may also vary due to differences in color and size.
All final interpretations are reserved by Felvoz.
Frame & Fork
-
Frame Weight: S: 960g / M: 970g / L: 980g
-
Fork Weight: 400g (uncut, excluding aluminum parts)
-
Tire Clearance: Up to 47mm (700c)
-
Available Sizes: S/M/L
Frame Specifications
-
Headset Bearings: 7mm×45°×52mm (upper/lower)
-
Bottom Bracket: BSA 68-73mm threaded
-
Rear Spacing: 12×142mm thru-axle
-
Front Spacing: 12×100mm thru-axle
-
Seatpost: D-shaped (original Dashi compatible)
-
Seat Clamp: Internal hidden type
Key Features:
-
47mm Maximum Tire Clearance
-
Lightweight Carbon Construction
-
BSA Threaded Bottom Bracket
-
Thru-Axle System (12×142mm/12×100mm)
-
Internal Cable Routing Compatible
-
Integrated Seatpost Clamp
-
Gravel-Specific Geometry
